I begin with taking the armor apart and trying to figure out what can I use as a base to work with.
Will begin with the build as seen in my sketch below. Removed the pauldrons and the tassets on that sketch, and left was only the chestplate.
 Building all the parts for the base with craftfoam and Worbla.



doodle

Making pattern for the armor here. I work with a dummy and dress it instead of myself. It’s much easier. So, cutting out the pieces and cover them in Worbla on one side.

P1010501



For the base I used 2 pieces of Worbla, because I wanted to have a sturdy base.
For all the other part I usually cover one side with Worbla and the other side is still craft foam. Like here:

P1010523

It saves you a lot of Worbla and it’s still great to build with.
After I’ve cut out all pieces, I put them into the right place on my dummy. It needs adjustment everytime, but better check twice if something’s in the right place.

P1010515

I make my own pattern with the help of the screenshots I got. And then just eyeball it.
It’s not something everyone can do as I’ve learned. A lot of people ask me how to do this. This is something and artist like me cannot explain entirely.
Maybe experience or the spatial perception that is more developed? I don’t know.

P1010548

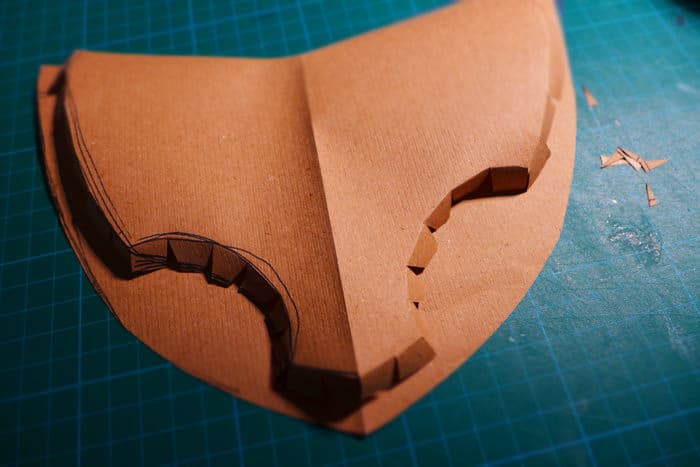

That’s how a pattern can look like before I turn it into foam and get it covered in Worbla. Eyeballing it here.



P1010550

And the craft foam version of it.

P1010551 P1010555



P1010564

And here’s the attached crotch protection.
Placing the cutout craft foam to check if it fits.
Sculpting the swirly bits with Apoxie Sculpt.

P1010562

Doing that here with the pauldrons, too.

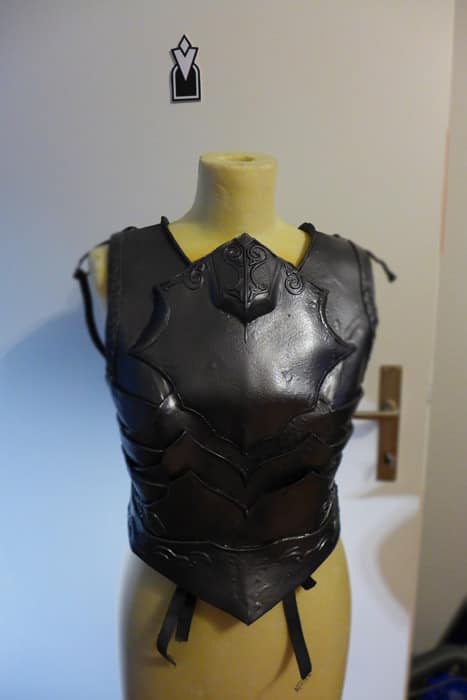

I can detach the shoulder piece and the pauldrons. Easier for transport and easier to put that thing on.

P1010579

P1010578 P1010577

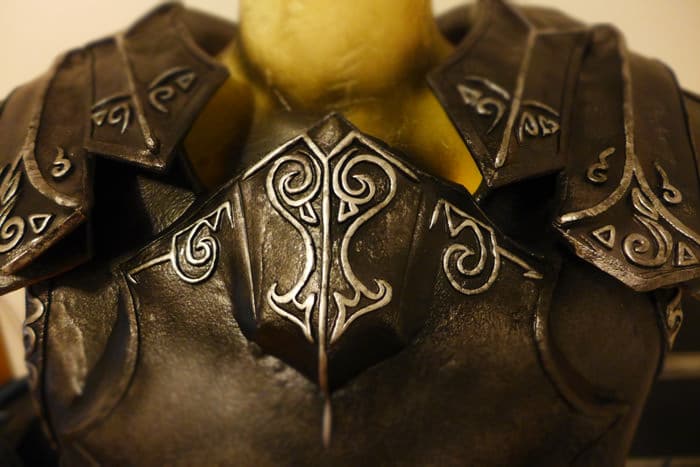

Weathering the armor here.
For the weathering I merely used primer, black paint, some dark grey metallic and silver paint for the highlights. Used a cloth to remove excessive paint. Got a nice texture like this.

P1010581 P1010585 P1010586

Doing a bit of a change and working on the few fabric parts the armor offers.
I used black leather here.

P1010547

Starting with the build of the tassets.

P1010569 P1010571 P1010574 P1010602 P1010607

And here they are done. Only need primer and paint and that’s it.

Next step was to craft the Ebony Gauntlets. Wasn’t that easy at first…

P1010622 P1010629 P1010641 P1010642 Ebony Gauntlets - Skyrim

The gauntlets were constructed to be opened and closed without any snaps, or belts or similar things. In game I couldn’t figure out any opening/closing system, and then I decided to build them the same way. Without people figuring out the system too easy.

P1010682

What the armor looked like until then.
I just had to craft the boots and helmets and I was done. Read further.

P1010687 P1010693 P1010700 P1010706

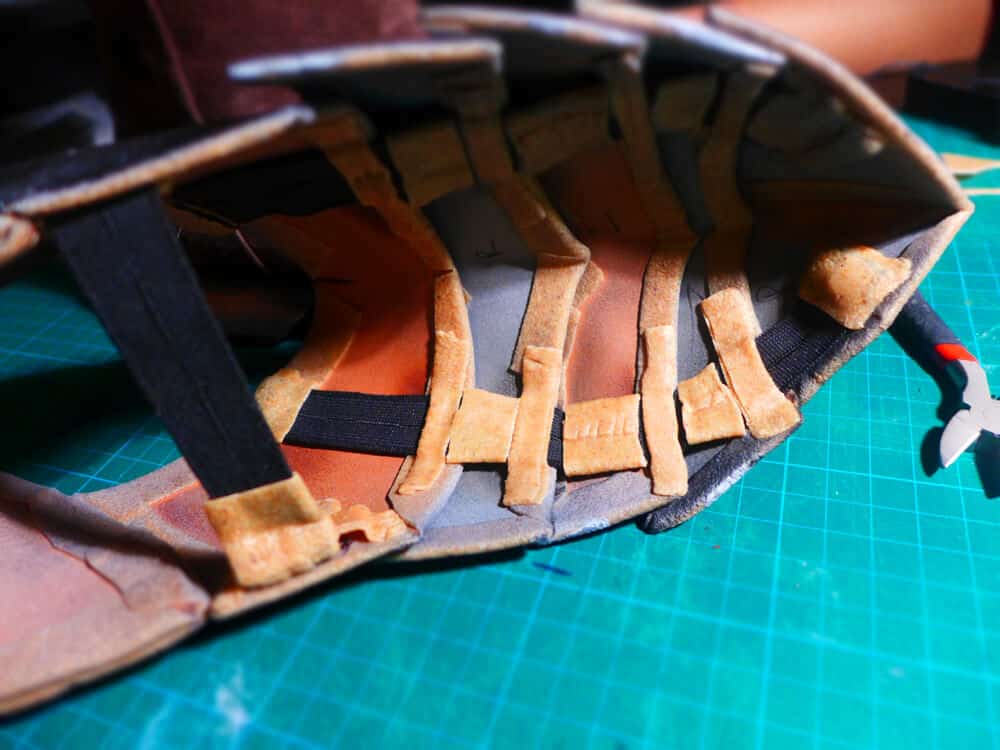

The most important part was to get the chain parts working.
I worked with elastic bands all the time.


P1010709
P1010713 P1020238

After beeing panted and all, they’re almost done, the Ebony Boots.

P1020231 P1020234 P1020232
P1020239 P1020249 P1020250

I guess I missed to photograph a few steps for the helmet… oh well.
But it’s done now.
