eso screenshotThis is the helmet I want to build. I’ll use different colors for it, but the model is the same.


P1030366
I cut the patterns out on thick paper and trace the outlines on the craft foam.


P1030367
After I cut out the craft foam pieces I trace their outlines to the thermoplastic sheets. I usually cut a 1cm wide edge which will be folded to the other side of the craft foam piece. It saves a lot of material.

P1030369

P1030371
I prepare the upper head piece, heat the thermoplastic base and the press the craft foam on it.

P1030373
I recommend to work with all parts step by step. Do not cut your thermoplastic and heat all the pieces already. You better work with it as long as it’s warm and re-heating the thermoplastic can cause lot of bubbles. I try to avoid to re-heat bigger surfaces while working.

P1030372
P1030374 P1030376 P1030377 P1030379 P1030381 P1030382 P1030384

P1030386

P1030385

P1030390
Drawing the details onto the surface where later a few thermoplastic pieces will replace them.

P1030392
The gap between those parts gets a filler.

P1030394

P1030397

Placed all the details here with your thermoplastic. Now we move to the next step.

P1030398

Preparing the Orc face mask.

P1030424

Thermoplastics are flexible when heated so they can be shaped without cracking.
I decided to shape it as close to the original as possible to save some material later.

P1030422  P1030426
I used scraps of thermoplastics which I keep in a box.
They can always be used to sculpt something so don’t throw them away.

P1030427 P1030428 P1030430
Looks much more like the orc face mask now. But it still needs a bit of detailing.

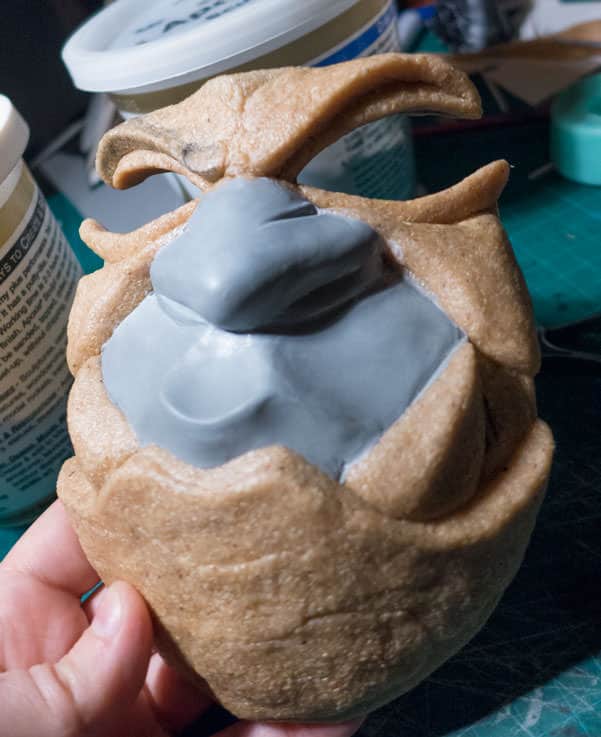

P1030437 The mask is prepared for the silicone mold. A layer of Apoxie Sculpt will help to get a smooth surface here.

P1030439
P1030440


P1030442

P1030445
When the sculpt is done I usually sand down the bumps until the surface  is smooth.
And then cover it with spray primer.

P1030449

For the ponytail I bought false brown hair and cut a thick piece.
Tied it down and then burnt one end with the heat gun to glue all strands together.

P1030451
Looks messy, but it’s tight and no hairloss is garanteed.

P1030453

The ponytail will is wrapped in a piece of thermoplastic/foam, which is attached to the helmet at the back.

P1030454

P1030455
The mask is covered in silicone rubber now.
With this I’ll be able to make as many casts as possible and finally make my own Orc army.

P1030459 P1030461 P1030462 P1030463

10445529_485278774943712_5038845007336514083_n

orc2 orc1



P1030525 P1030523 P1030524 P1030527 P1030529 P1030531 P1030533P1030656 P1030535

P1030648 P1030652 P1030653 P1030654 P1030655 P1030657 P1030660
